Roll Tank Deck System - Finish 'n' Fit
By:Joe Bousquet

Introduction
Before
Destruction
Bulkheads
Beams 1
Beams 2
Roll Tank 1
Roll Tank 2
Roll Tank 3
Deck 1
Deck 2
Finish N Fit
Gone Sailing

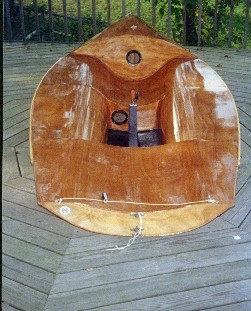

Jb2: The deck after receiving 2-3 coats of WEST epoxy to harden and strengthen the surface was sanded with 220 grit paper then given a couple of coats of polyurethane varnish that contained a UV filter.

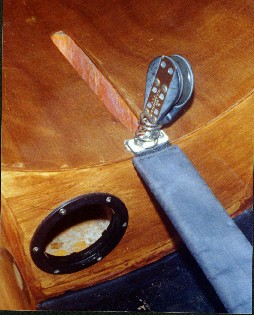

JB4: The front end of the footwell. The hiking strap and mainsheet block are screwed into a strong point at the back of the well. The RWO inspection port is to allow ventilation throughout the tanks when not sailing.

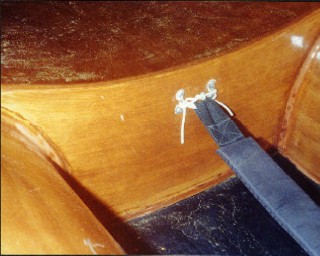

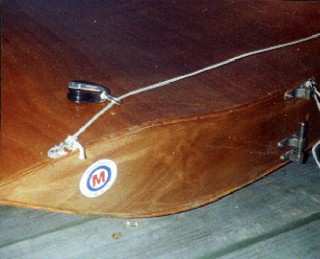

JB8: The back end of the cockpit. The hiking strap is secured to eyestraps screwed into mahogany blocks. Jb3: The transom pintles and rudder gudgeons were the original. The stern traveler is simply a 1/8 dacron cord tied to two eyestraps. The bullet block rides on a bow shackle. I firmly believe in the KISS system of rigging: Keep it simple, stupid!



Joe Bousquet - jbousquet@erols.com
