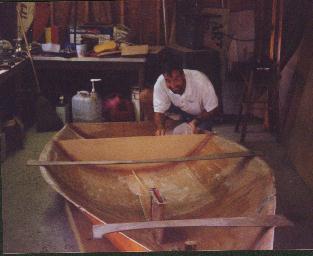

B7: Glassing in the bulkhead at the aft end of the cockpit. Note the temporary
plywood straps glued to the edges of the shell to keep it from spreading apart. Once the bulkheads
are in, the straps are removed.
|

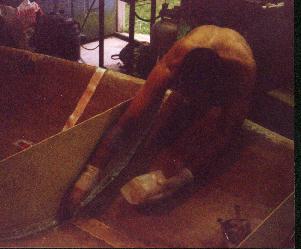

B8: Glassing in the bulkhead at the forward end of the cockpit. Note the
daggerboard case just forward of the bulkhead.
|

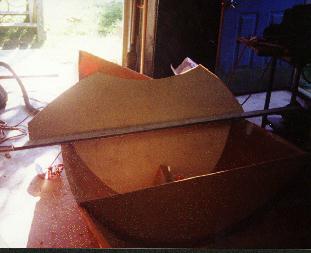

B9: The bulkhead at the aft end of the foredeck. the straight edge helped to
construct the desired radius.
|

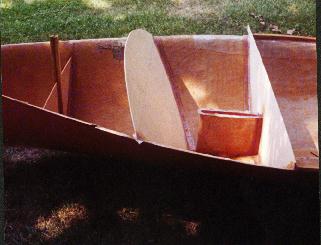

B10: The bulkhead at the aft end of the foredeck is angled forward. The mast
step is supported by a half bulkhead down low and a laminated post to the future deck height.
|
 |
 |
